Ahnnet Fiber Tap provides total traffic visibility for monitoring and security devices. Requiring no power, the 10Gigabit Fiber Taps maintain permanent passive access ports without introducing a point of failure or disturbing other network connections. These passive Taps deliver full-duplex monitoring with zero impact on network traffic.
* Provides passive access without data stream interference or introducing a point of failure
* All-optical design is optimized and tested for 10Gigabit fiber networks
* Fully compatible with 1Gigabit fiber networks
* Permanent in-line installation without affecting network performance
* Passes all full-duplex traffic (including errors) from all layers for comprehensive troubleshooting
* No IP address is needed for the Tap or monitoring device, enhancing monitoring security
* Completely transparent to the network and requires no power
Interfaces
* Network : 1 Link (2 Full duplex, LC connectors)
* Monitoring : 1 Full duplex, LC connectors
* Physical : 10000Base-SR, Multimode
* Maximum Transmission Speed : 20Gbps (Up+Down)
* Media Interface : Insertion Loss < 5.0dB / < 12.5dB
* Coupling Ratio : 50:50 (Network:Monitoring)
* Wavelength : 850nm
* Cable Length (Max) : 220 (50um, Multimode)
Operating Environment
* Temperature : -40℃ ~ 85℃
* Humidity : 0% ~ 90% (Non condensing)
* Dimensions : 40 x 159 x 17 (mm)
* Type : Standalone / Chassis (24 slots)

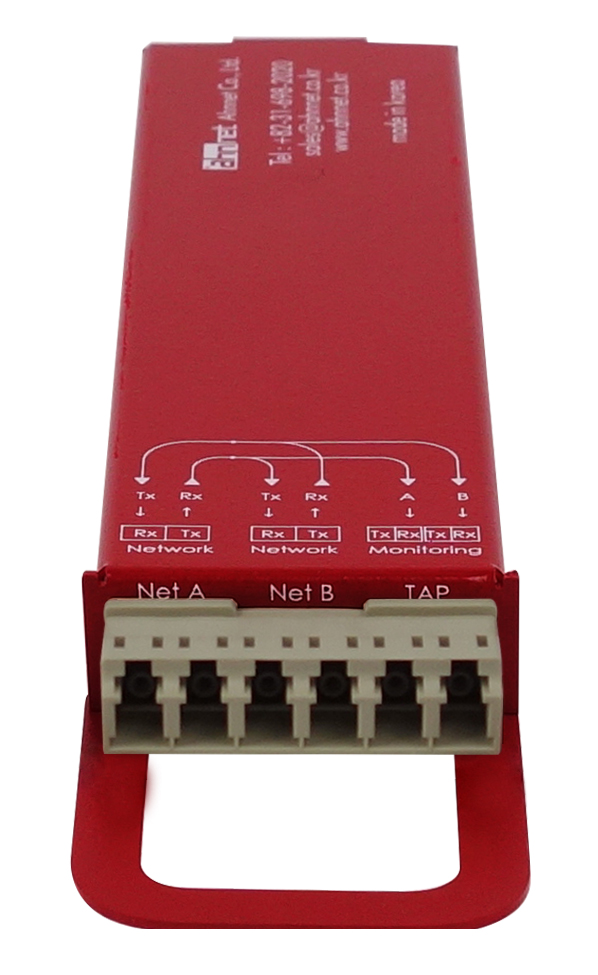

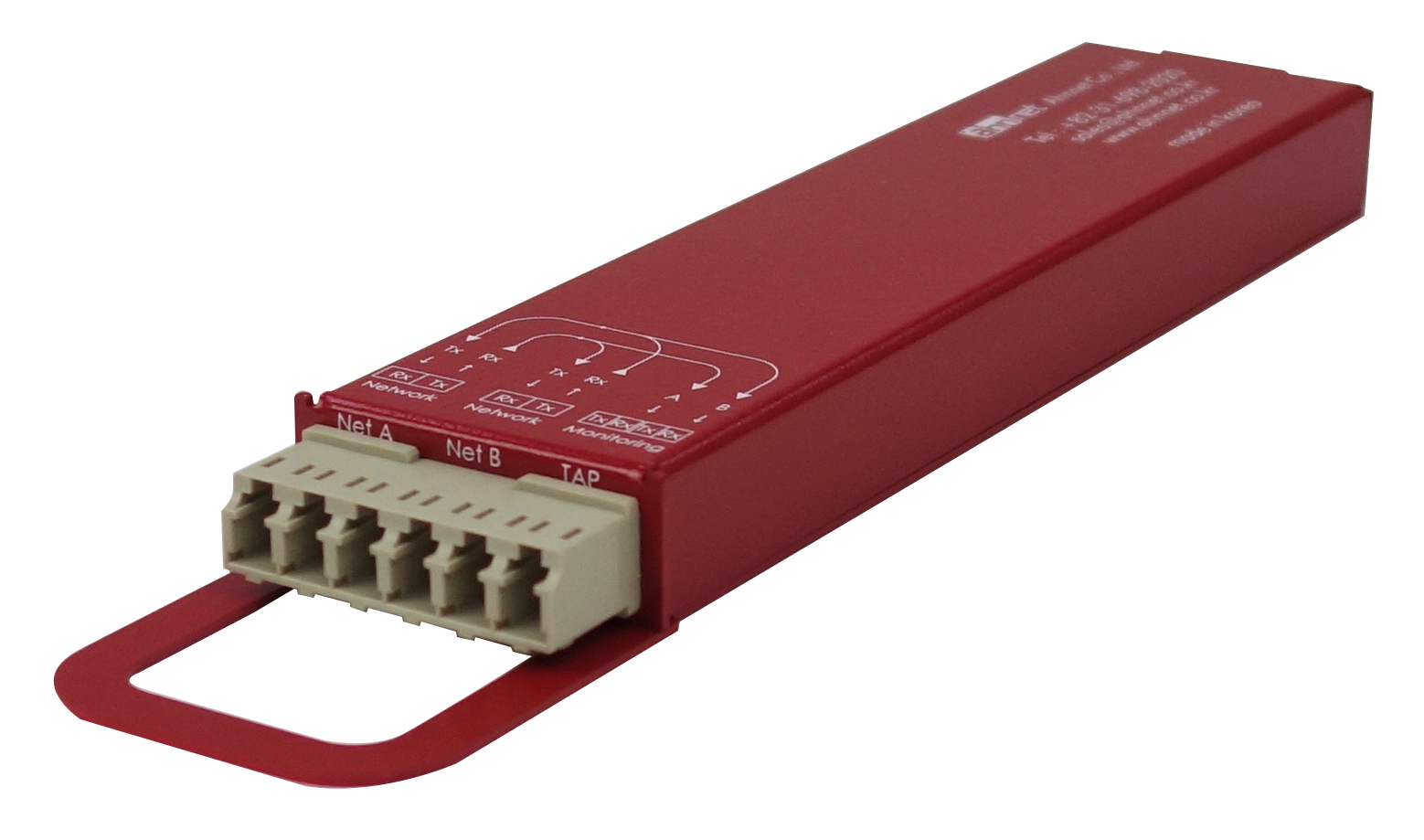

* HDTAP-10G-SR : 10Gigabit Fiber TAP, SR, Multimode, 850nm, LC connectors, 1×1

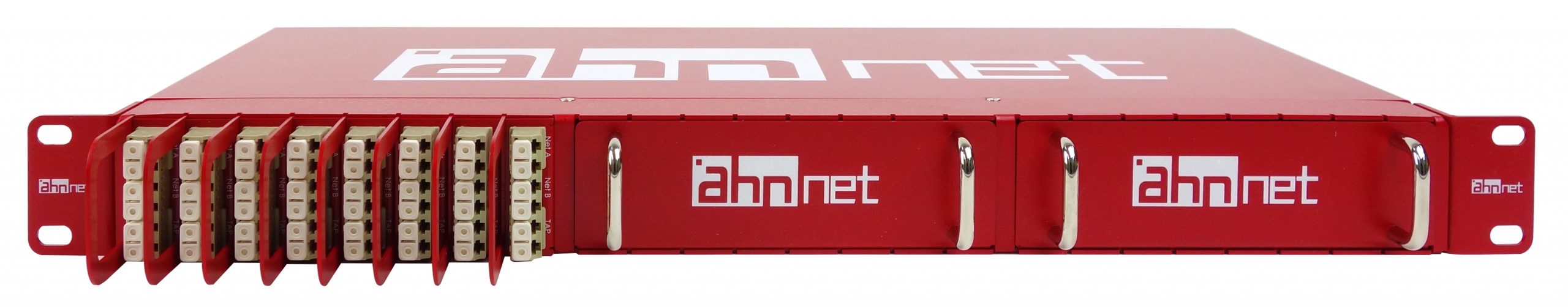

* RMF-24 : 1RU, Chassis, Up to 24 units available
