The MAESTRO family helps network administrators build next-generation fabric visibility networks. Monitoring is possible from multiple network traffic sources using Tap, Aggregation, Replication, Tag, Strip, Filter, Load-balancing, and Packet Slicing functions, and a monitoring environment can be built without a mirroring (SPAN) port.

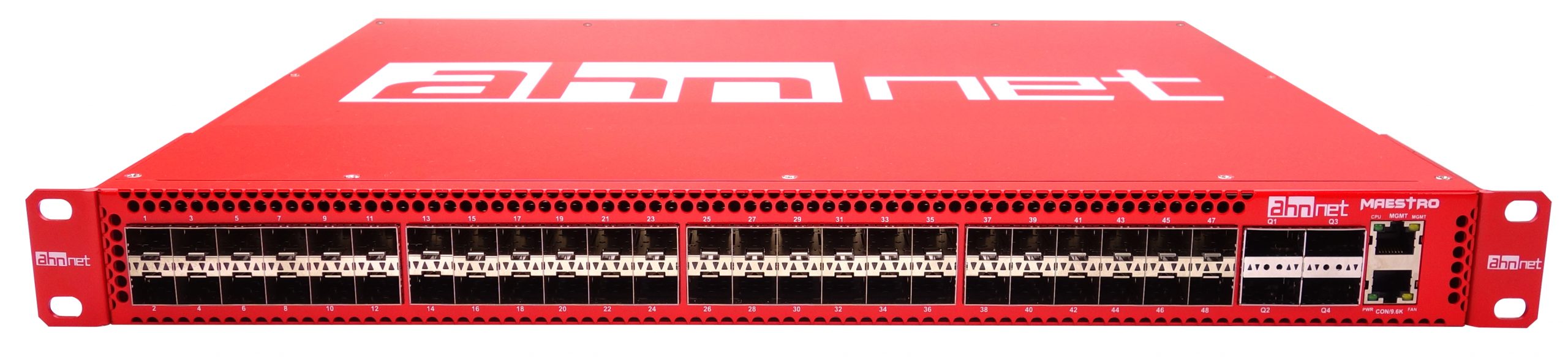

MAESTRO-X4840 product applies advanced silicon technology, support 1G/10G (SFP/SFP+) 48 ports, and 40G (QSFP+) 4 ports. It provides an optimal monitoring environment in 1Gbps ~ 40Gbps networks. It supports 1.28Tbps Backplane performance even in extreme environments with the smallest unit packet size.
-
- MAESTRO-X4840
-
- MAESTRO-X1200
-
- MAESTRO-X2400
-
- MAESTRO-X3600
-
- MAESTRO-X4800
* Silicon Capacity 1.28Tbps
* 48x 1G/10G (SFP/SFP+) Ports
* 4x 40G (QSFP+) Ports
* Symmetric Hash Load-balancing
* CONSOLE/SSH/WEB/SNMP
* Aggregation, Replication, Filter, Tag, Load-balancing and etc
* Supports Flow Maps for Inline Applications
* Management : 10/100/1000 Ethernet, CONSOLE
* Any to Any flow configurations
* 1+1 Redundant, Hotswappable Power Supply
* 5x FANs (How-swappable)
* 19′ 1RU
* KC Certificate
Interfaces
* 48x 1G/10G (SFP/SFP+) Ports
* 4x 40G (QSFP+) Ports
* 1x RJ45 Ethernet
* 1x RJ45 CONSOLE (RS232)
* SFP/SFP+/QSFP+ Fiber Optics
Performance
* Capacity : 1.28Tbps
* Throughput : < 1000Mpps
LED
* System : System Status LED, PSU Status LED, FAN Status LED, Reset Button
* Interfaces : Link/Activity
Management
* Ethernet : 10/100/1000BASE-T Category 5, Category 5e, Category 6 UTP
* CONSOLE : 115200 Baud 8 Bit Data No Parity 1 Stop Bit
Electrical
* Dual 400W High Efficiency 100-240VAC 50-60Hz
* 1+1 Redundant Power Supply
* Power Consumption : Typical 120W, Max 180W
Mechanical
* Dimension : 440 x 414 x 44 mm (W x D x H)
* Weight : < 6kg (Not included transceivers)
* Fans : 5x Front to Back Air Flow
Environment
* Operating Temperature : 0º ~ 50º C
* Humidity : 10 ~ 90% (Non-condensing)
Certifications
* KC certificate

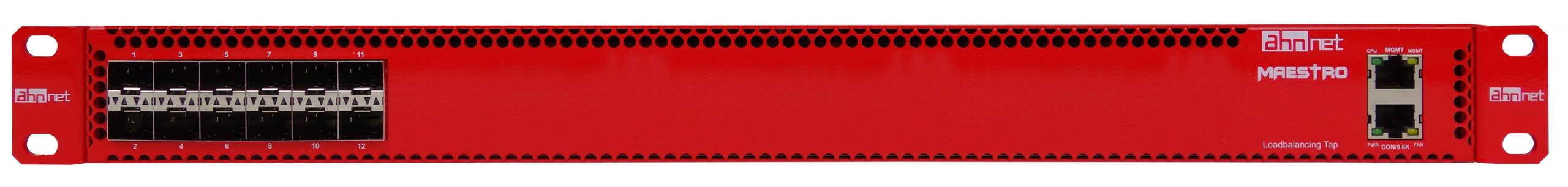

* X1200 : 12x 1G/10G (SFP/SFP+) Ports

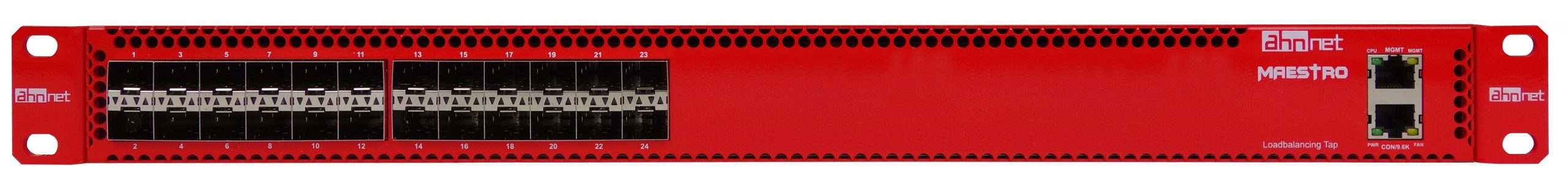

* X2400 : 24x 1G/10G (SFP/SFP+) Ports
* X3600 : 36x 1G/10G (SFP/SFP+) Ports

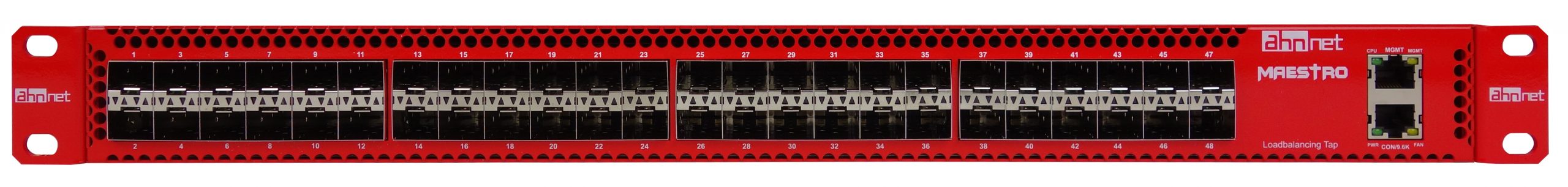

* X4800 : 48x 1G/10G (SFP/SFP+) Ports
* X4840 : 48x 1G/10G (SFP/SFP+) Ports + 4x 40G (QSFP+) Ports
