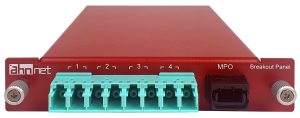

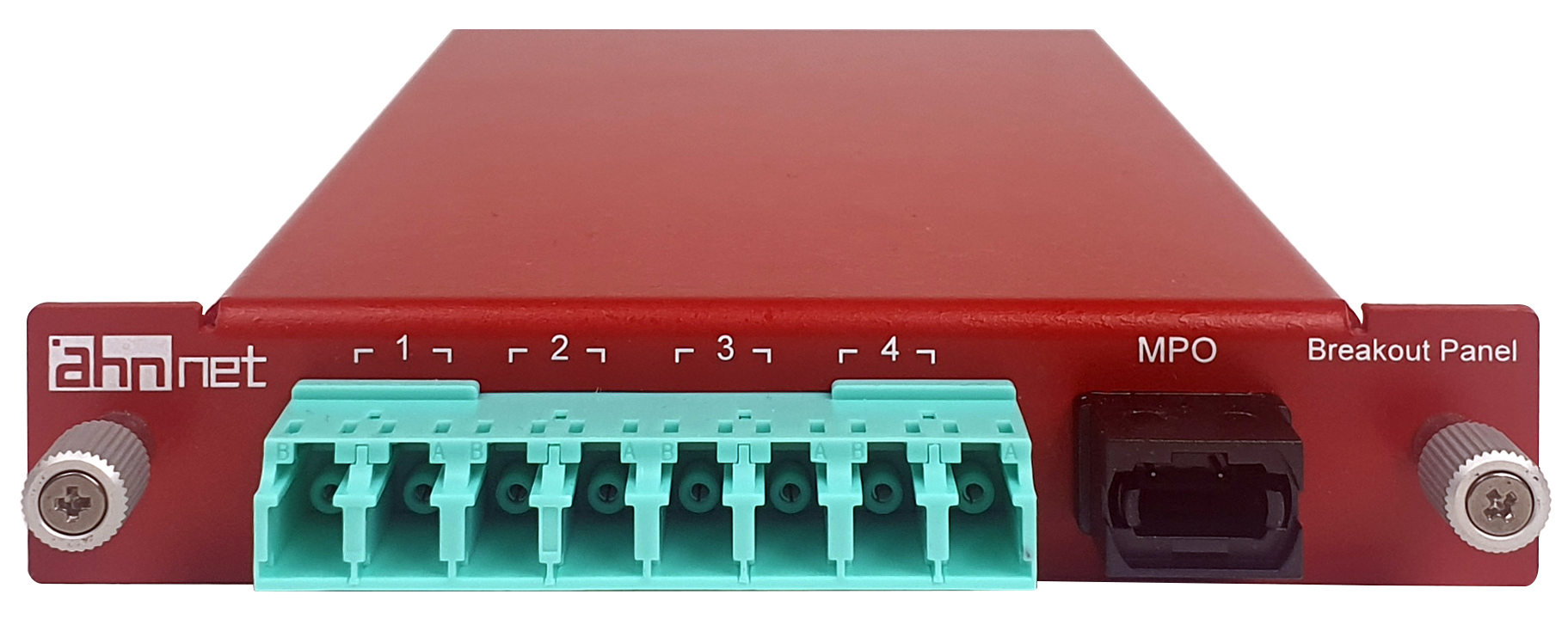

Ahnnet Breakout Panel provides total traffic visibility for monitoring and security devices. It supports 40G/100G multimode, SR4 and MPO/LC type connectors. This Breakout Panel helps monitoring packets with 10G/25G security devices from 40G/100G breakout interface.
-
- 8 Units in Rackmount Frame
* Provides helps monitoring packets with 10G/25G to 40G/100G breakout interface
* All-optical design is optimized and tested for 10G/25G/40G/100G
* Requires no power
Interfaces
* Network : 1x MPO connectors
* Monitoring : 4x LC connectors
* Maximum Transmission Speed : 20Gbps (Up+Down)
* Media Interface : Insertion Loss < 5.0dB / < 12.5dB
* Wavelength : 850nm
* Cable Length (Max) : 220 (50um, Multimode)
Operating Environment
* Temperature : -40℃ ~ 85℃
* Humidity : 0% ~ 90% (Non condensing)
* Dimensions : 81 x 149 x 20 (mm)
* Type : Standalone / Rackmount Frame, 8 slots
* BP-MPO-LC : 10G/25G to 40G/100G, Multimode, 850nm, MPO/LC connectors, 1×4 way breakout

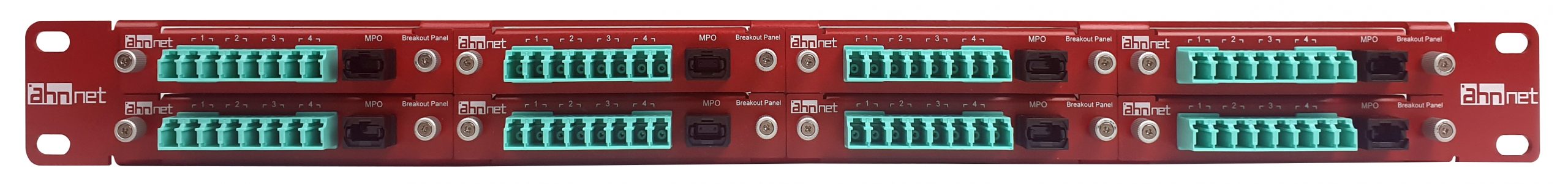

* RMF-8 : 1RU, Rackmount Frame, 8 slots
